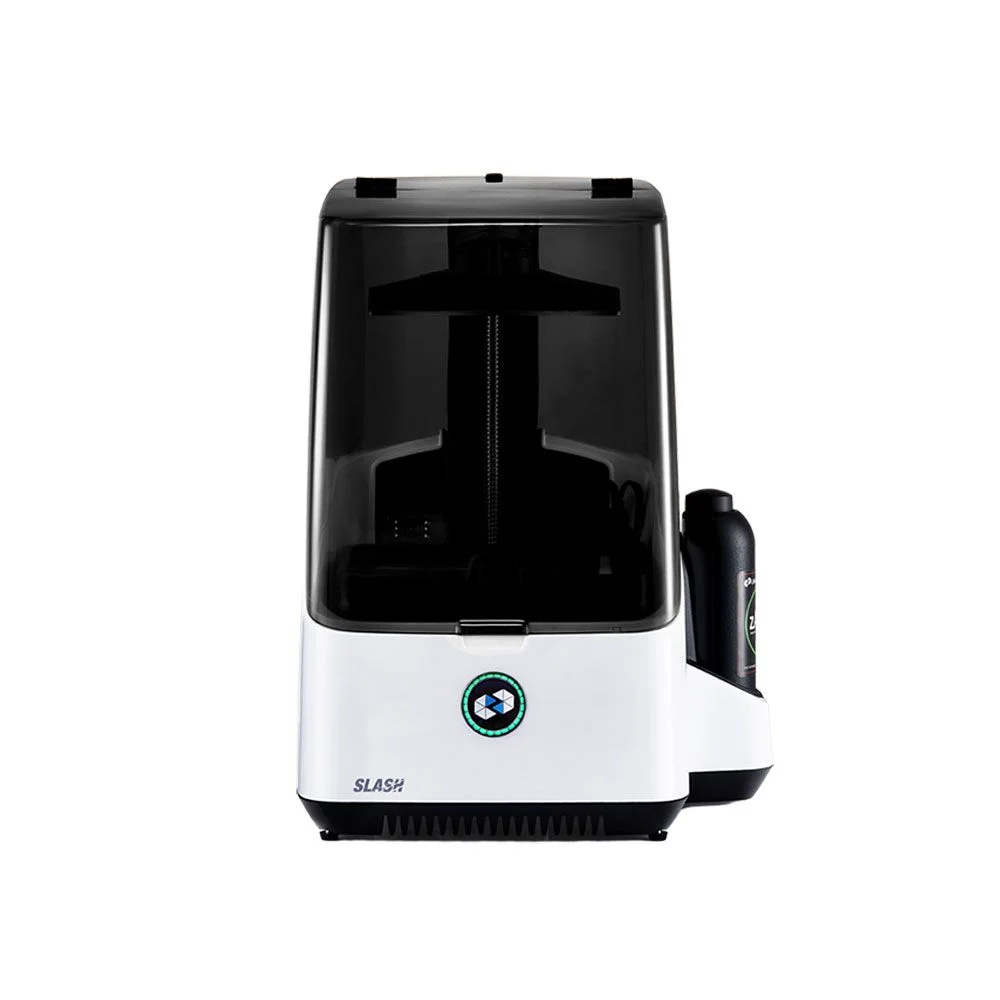

SLASH PLUS UDP is the first printer to employ Uniz’s Uni-Directional Peel™ (UDP) technology, delivering layerless, high resolution end-use parts with exceptional surface finish and resolution.

Tech Specs

PRINTING

Printing Technology LCD Stereolithography

Build Volume 192 × 120 × 200mm (7.5" × 4.7" × 7.9")

XY Resolution 40µm

Highest Accuracy* ±20µm

Layer Thickness (Z resolution) 10, 25, 50, 100, 150, 200, 300µm, profile customizable

Separation Mechanism Polymer film natural peel
Up to 100x more durable than PDMS
UDP ready**

Support Uniz smart support technology

Printing Speed Up to 600 mm/hr (UDP mode)
Up to 200 mm/hr (Normal mode)

Resin Level Control Automatic level control

HARDWARE

Dimension/ Weight 350 × 400 × 530mm [W×H×D] (14" × 16" × 21")
14KG (30LB)

Operating Temperature Suggested 18-28°C (64-82°F)

Power Requirement 100-240VAC, 6A 50/60Hz, 480W

Optical System 5500 Lux blue LED array
liquid cooling system

Mechanical Cast Aluminum & CNC, Injection Molding

Connectivity USB, Wifi, Ethernet

DESKTOP SOFTWARE

System Requirement Windows 7 and up (64-bit only), Mac OS X 10.7 and up (64-bit only), 16GB RAM, OpenGL 2.1, Discrete Graphics

Advanced Features Multi-printer management
Built-in advanced model repair
Ultra large file support (1GB+)

Compatible Format STL, OBJ, AMF, 3MF, UNIZ

MOBILE APPS

Compatible Systems iPhone, iPad, Android Phone and Tablet
