Please contact us before you order it.

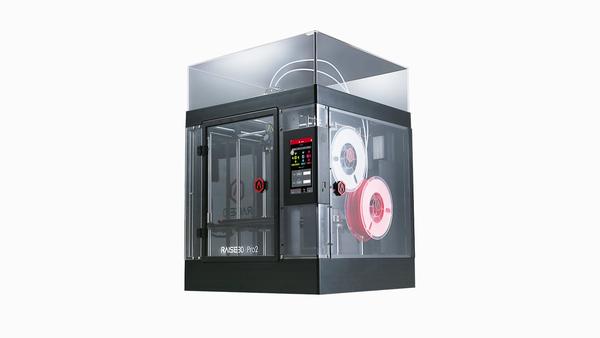

Industrial grade components printer that is ready for short-run manufacturing. Runs continuously with high reliability, handling a wide variety of materials. Set to integrate a print factory.

Dual Extruder: Electronic driven lifting; 4× increased torque performance.
Huge Build Volume.
0.01mm Layer Height.
Filament Sensor / Camera / Filter.
Wide Filament Compatibility (300ºC).
Resume Print after Power Outage.
7" Touch Screen / Wireless Compatibility.

Electronic Driven Lifting Dual Extrusion

Prints the most intricate projects. Expedites works. Multi-material prints.

High repeatability. (<0.005m, 5 micron).
Light speed, <1 second switching time.
1.5mm lifting distance, compatible with flexible filaments.
Over 100,000 times reliability test passed.

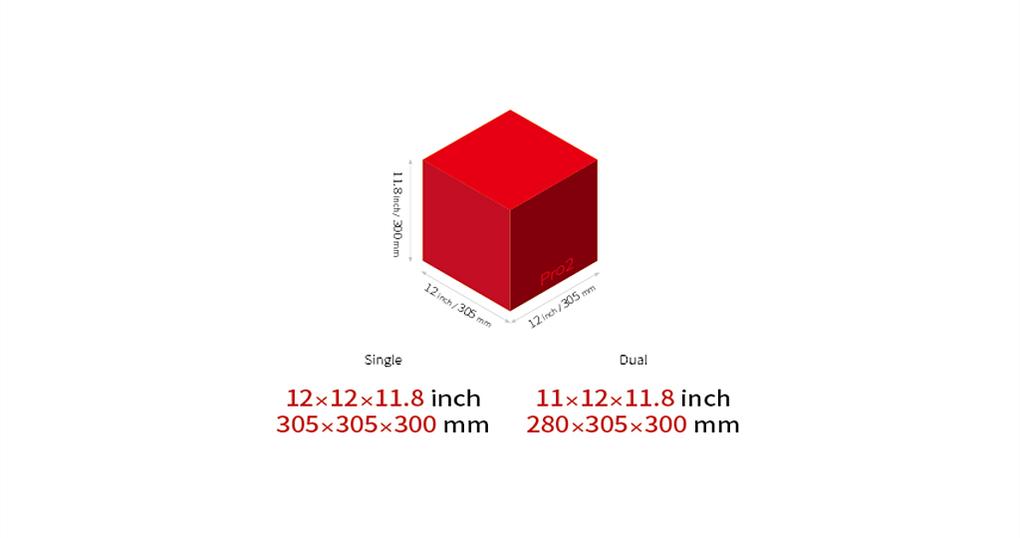

Big Building Volume

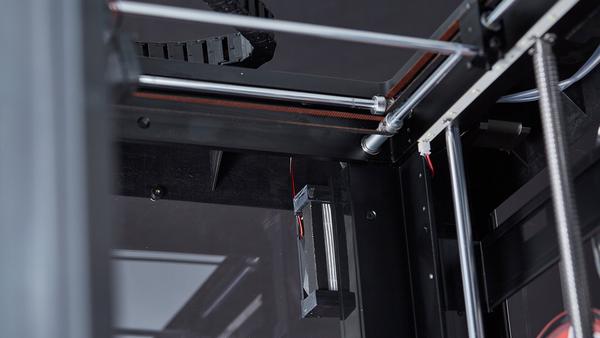

24/7 Reliability by High-Strength Aluminum Frame.

12 inch * 12 inch * 11.8 inch

Wide Material Compatibility

PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / Glass Fiber Filled / Wood-Filled / Carbon Fiber Enforced.

High Resolution

The unique motion system for superior part quality and resolution.

Unmatched layer resolution 0.01mm layer thickness.
Interchangeable nozzle 0.2mm nozzle for finer X/Y spot size.
Precise positioning 0.0125mm positioning resolution on X/Y axis.

Singular User Experience

7-inch touch screen.

Visual interface / Rapid reviewing / Visual print progress / Full adjustment control.

Second Generation Power Loss Resuming

Never lose a print.

Wireless Printing and Control

Operate efficiently with ideaMaker by connecting wirelessly to your Pro Series Printer.
Built-in camera.

Next Generation Motion Controller

Top reliability. Accurate current control. Silky smooth movement. Superior thermal performance.

400MHz ARM Cortex-M7 32bit RISC FPU.
Industrial grade components.
Standalone motor driver.
256 micro-steps driver system.

New Extruder with Filament Run-Out Sensor

Better grip. No slipping. Safer prints.

Dual gear driven.
4× increased torque performance.
Fluent and sensitive, optical run-out sensor.

New Air filter

Environmentally friendly.
Silently protecting our health.

Absorbs >91% of particles.

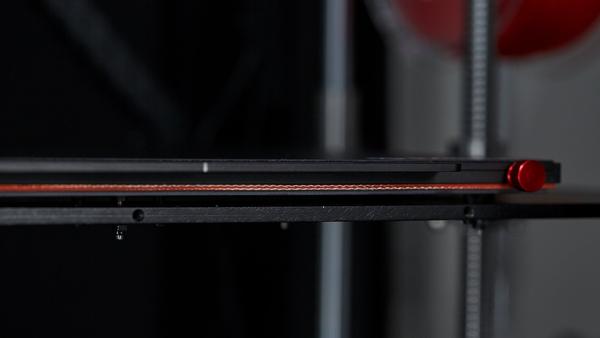

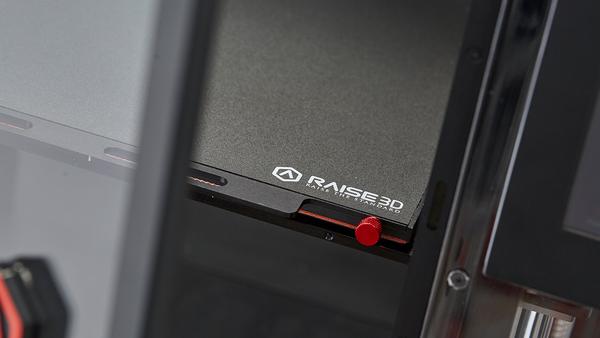

New Build Plate System

Excellent warping prevention.
Even heat distribution.
Longer lifetime.
Steady and simple to use.

Aerospace grade material.
High temperature silicone heating bed.
Magnetic hold aluminium bed.
Improved 4+9 points lock system.

Technical specifications

• General

Print Technology: FFF

Build Volume (W×D×H):
- Single Extrusion: 12×12×11.8 in / 305×305×300 mm
- Dual Extrusion: 11×12×11.8 in / 280×305×300 mm
Machine Size (W×D×H): 24.4×23.2×29.9 in / 620×590×760 mm
Print Head: Dual-head with electronic lifting system
Filament Diameter: 1.75mm
XYZ Step Size: 0.78125, 0.78125, 0.078125 micron
Print Head Travel Speed: 30 - 150 mm/s
Build Plate: Heated aluminum build plate with magnetic holding
Max Build Plate Temperature: 110 ºC
Build Plate Material: Silicone
Build Plate Leveling: Pre-calibrated leveling
Supported Materials:
PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / Glass Fiber Filled / Wood-Filled / Carbon Fiber Enforced
Nozzle Diameter: 0.2/ 0.4/ 0.6/ 0.8mm
Max Nozzle Temperature: 300 ºC
Operating Sound: 50 dB
Connectivity: Wi-Fi, LAN, USB port
Monitoring: Live camera

• Electrical

  Power Supply Input: Universal 100-240 VAC, 50/60 Hz
  Power Supply Output: 600 Watts, 24 VDC

• Software

  Slicing Software: ideaMaker
  Supported File Types: STL, OBJ
  Supported OS: WINDOWS/ IOS/ LINUX
  Machine Code Type: GCODE

• Printer Controller

  User Interface: 7 inch Touch Screen
  Network: Ethernet 802.11b/g/n Wifi 2.4GHz/5GHz
  Resume Print after Power Outage: Second Generation
  Screen Resolution: 1024*600
  Motion Controller: ARM Cortex M7.400MHZ FPU
  Logic Controller: Freescale imx6, Quad core 1Ghz ARM processor
  Memory: 1GB
  Onboard Flash: 8GB
  OS: Embedded Linux
  Ports: Sdcard*1, Usb2.0*2, Ethernet*1

Raise3D Limited Warranty
