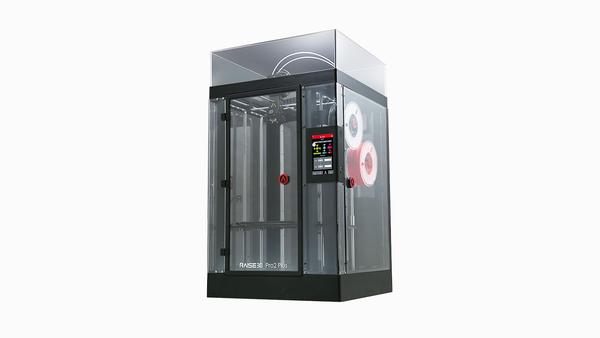

Large build volume industrial grade components printer that is ready for short-run manufacturing. Runs continuously with high reliability, handling a wide variety of materials. Set to integrate a print factory.

Dual Extruder: Electronic driven lifting; 4× increased torque performance.
Massive Build Volume.
0.01mm Layer Height.
Filament Sensor / Camera / Filter.
Wide Filament Compatibility (300ºC).
Resume Print after Power Outage.
7" Touch Screen / Wireless Compatibility.

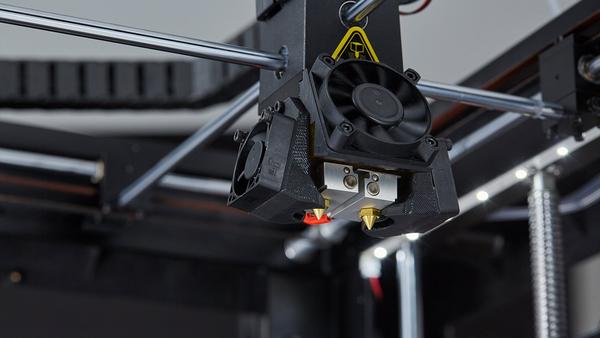

Electronic Driven Lifting Dual Extrusion

Prints the most intricate projects. Expedites works. Multi-material prints.

High repeatability. (<0.005m, 5 micron).
Light speed, <1 second switching time.
1.5mm lifting distance, compatible with flexible filaments.
Over 100,000 times reliability test passed.

Big Building Volume

24/7 Reliability by High-Strength Aluminum Frame.

12 inch * 12 inch * 23.8 inch

Wide Material Compatibility

PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / Glass Fiber Filled / Wood-Filled / Carbon Fiber Enforced.

High Resolution

The unique motion system for superior part quality and resolution.

Unmatched layer resolution 0.01mm layer thickness.
Interchangeable nozzle 0.2mm nozzle for finer X/Y spot size.
Precise positioning 0.0125mm positioning resolution on X/Y axis.

Singular User Experience

7-inch touch screen.

Visual interface / Rapid reviewing / Visual print progress / Full adjustment control.

Second Generation Power Loss Resuming

Never lose a print.

Wireless Printing and Control

Operate efficiently with ideaMaker by connecting wirelessly to your Pro Series Printer.
Built-in camera.

Next Generation Motion Controller

Top reliability. Accurate current control. Silky smooth movement. Superior thermal performance.

400MHz ARM Cortex-M7 32bit RISC FPU.
Industrial grade components.
Standalone motor driver.
256 micro-steps driver system.

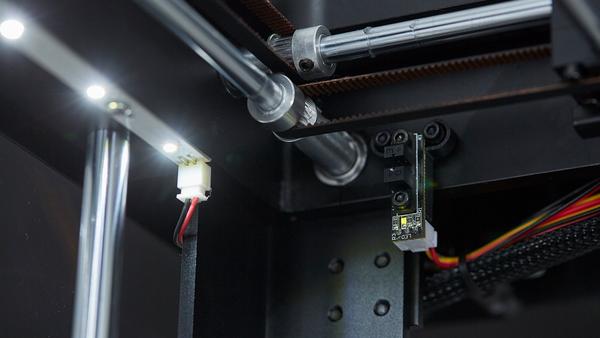

New Extruder with Filament Run-Out Sensor

Better grip. No slipping. Safer prints.

Dual gear driven.
4× increased torque performance.
Fluent and sensitive, optical run-out sensor.

New Air filter

Environmentally friendly.
Silently protecting our health.

Absorbs >91% of particles.

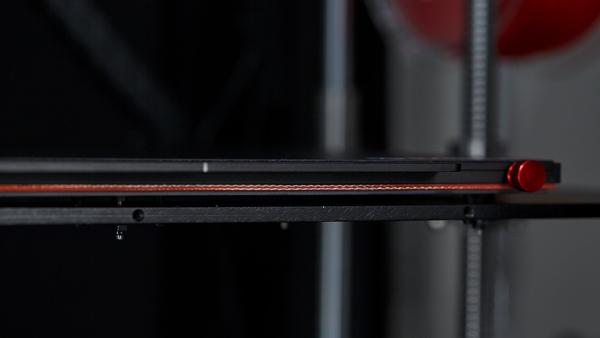

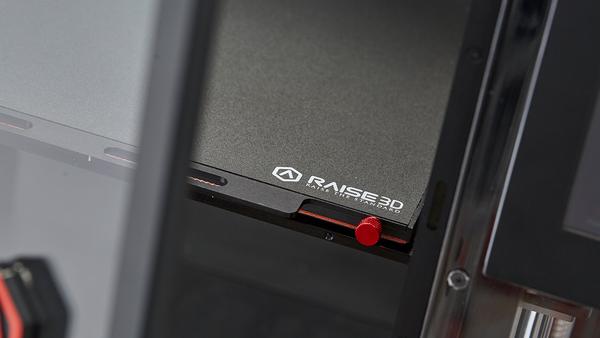

New Build Plate System

Excellent warping prevention.
Even heat distribution.
Longer lifetime.
Steady and simple to use.

Aerospace grade material.
High temperature silicone heating bed.
Magnetic hold aluminium bed.
Improved 4+9 points lock system.

Raise3D Limited Warranty.
